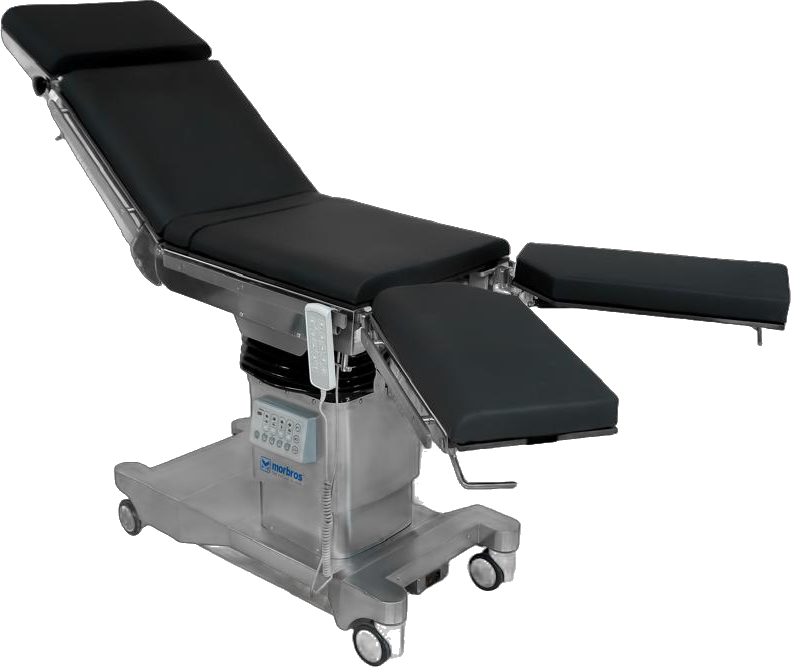

Matrix Advance

Modular universal operating table with motorised imaging access.

Weight-bearing capacity: 350 kg
Functions: 5; brochure does not enumerate the five functions in the technical table
Longitudinal slide: Motorised, for C-arm access; travel in mm unspecified

Complete specifications

Catalogue-stated specifications. Confirm the final supplied configuration in your quotation.

Dimensions and capacity

Table length: 1900 mm
Table-top width: 520 mm
Minimum height without mattress: 750 mmWithout mattress
Maximum height without mattress: 1000 mmWithout mattress
Weight-bearing capacity: 350 kg

Positioning

Trendelenburg: 25°
Reverse Trendelenburg: 25°
Lateral tilt: 20°; brochure diagram shows both directions
Back section: +70°
Head section: +60°
Leg section: 0°-90°
Kidney bridge: In-built; lift height unspecified
Articulation: Smooth, stepless table-top articulation
Kidney lift: Confirm in quotation
Negative back range: Confirm in quotation
Negative head range: Confirm in quotation

Imaging and modularity

Table top: Five-section radiolucent table top
Longitudinal slide: Motorised, for C-arm access; travel in mm unspecified
Modular sections: Detachable head, leg and pelvic sections on stainless-steel fittings
Head/leg plates: Dual-joint head plate and dual-joint leg plates
Lower back plate: Gynaecology cutout
Extension plate: Accepts additional modules
Short leg plates: Electro-hydraulic, individual or synchronous adjustment
Slide travel: Confirm in quotation
Standard accessories: Confirm in quotation

Controls and power

Functions: 5; brochure does not enumerate the five functions in the technical table
Zero position: Single click
Floor locking: Centre floor locking
Power backup: Standby battery with recharging circuit
Controls: Corded hand control and column control panel
Input voltage: Confirm in quotation
Wireless remote: Confirm in quotation
Emergency override: Confirm in quotation
Enumerated functions: Confirm in quotation

Build and care

Column: Centre pillar
Base and cover: Easy-clean stainless steel
Mattress thickness: Confirm in quotation

Configuration references

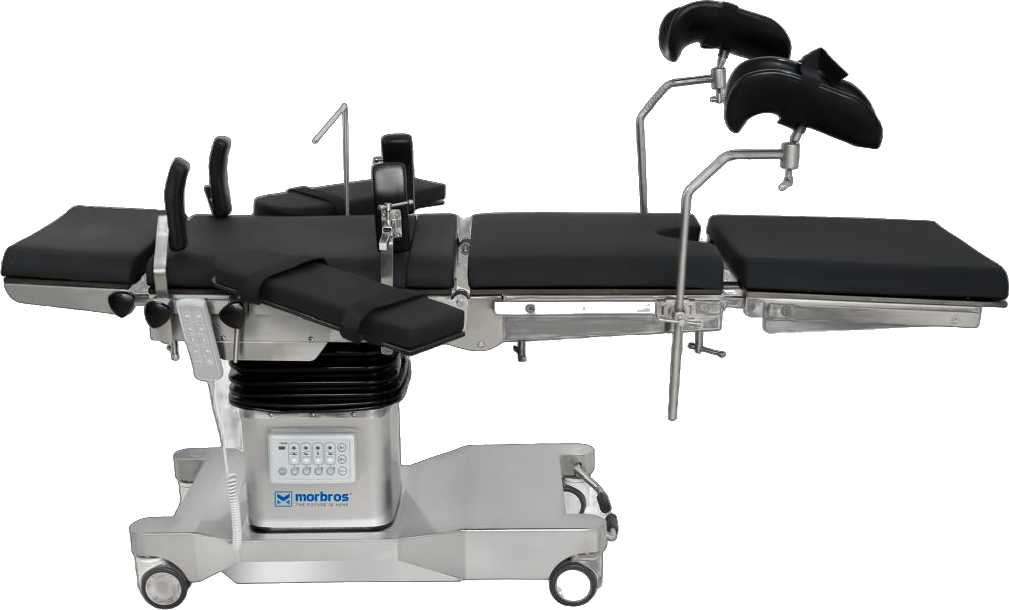

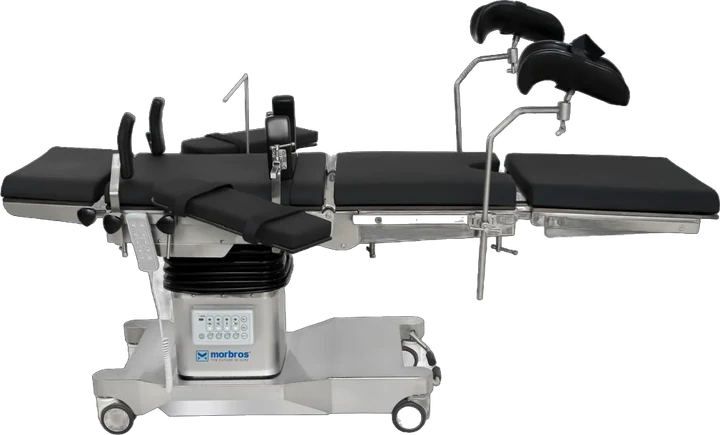

Matrix Advance illustrated accessory configuration — Illustrated accessories and their standard package inclusion to confirm.

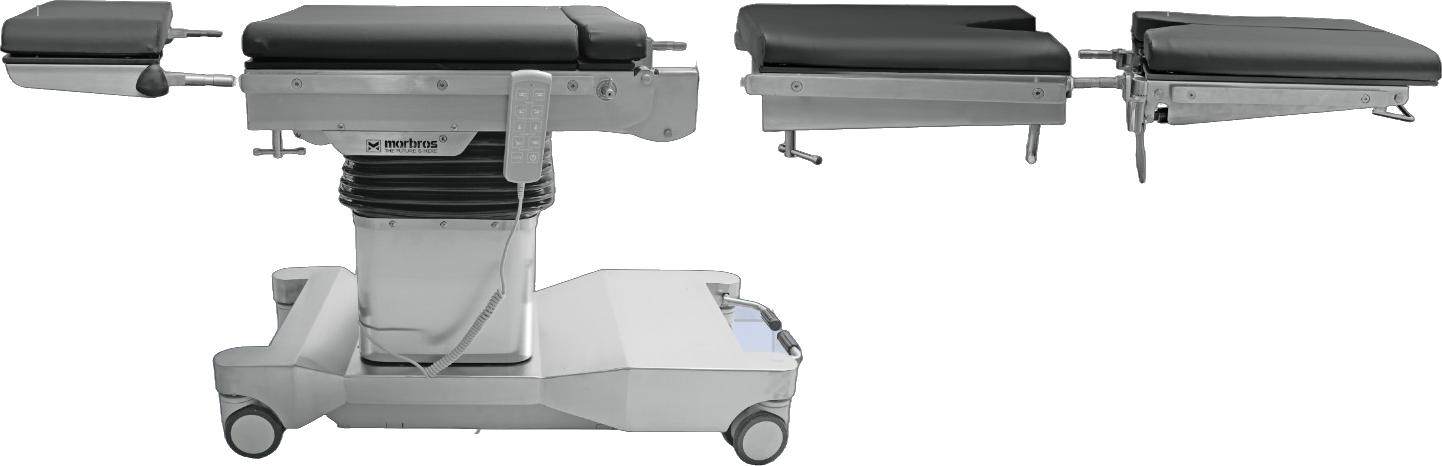

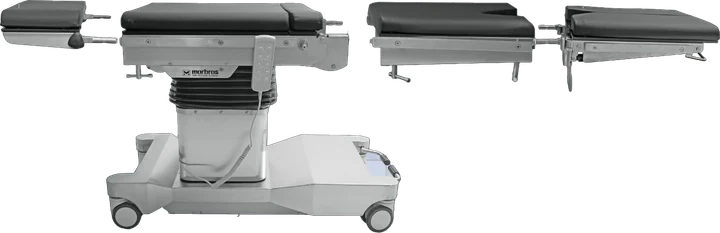

Matrix Advance two side-view configurations — Two side-view configurations shown together; retain both views and complete equipment.

Documents and useful answers

Whole-catalogue downloads are unavailable pending complete-document review. Request confirmed specifications from sales.

Morbros India manufacturer documents

What specifications distinguish Matrix Advance?

Weight-bearing capacity: 350 kg. Functions: 5; brochure does not enumerate the five functions in the technical table. Longitudinal slide: Motorised, for C-arm access; travel in mm unspecified.

What still needs confirming?

Confirm the supplied configuration, optional upgrades, installation requirements and documents with sales.
